Chuck Jaws, Toolholders, and Workholding
Industrial Tool Holders
Rotem supplies workholding tools by Dillon Manufacturing. Whether you need chuck jaws, custom jaws, jaw nuts, boring rings, collet pads, or more, Rotem’s partnership with Dillon Manufacturing can find what you need. Dillon Manufacturing offers a variety of chuck jaws and boring rings of various sizes to allow for ease and accuracy. Their boring rings are ideal for O.D. gripping and are essential for boring soft jaws and round jaws.
Rotem is a leading provider of chuck jaws in Ontario and across Canada. We can provide custom special chuck jaw solutions for your unique needs in a variety of configurations, geometry, and special materials. For more information or to place an order today on custom chuck jaws or other industrial workholding tools, contact us! Whatever workholding tools you need for your workspace, Rotem and Dillon Manufacturing can help.
Order before 2:00 pm today to receive same day shipping.
Soft Jaws
Rotem is a leading provider of chuck jaws in Ontario. For chuck jaws, chuck rings, and T-nuts, contact Rotem today!

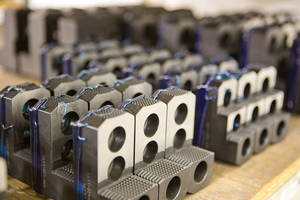

Rotem stocks a wide selection of Soft Jaws for most chucks at competitive prices and quick delivery to your shop. Pie jaws available in steel and aluminum.
Standard Height-Steel- Pointed, Soft, Top Jaws
| ORDER # | Chuck Size | A (Length) | B (Height) | C (Width) | D (slot width) | K (distance between holes) | J (edge to hole) | Screw Size |
| 204-880 | 6″ | 3.0″ | 1.5″ | 1.25″ | 0.472″ | 0.787″ | 0.598″ | M10 |
| 204-881 | 8″ | 3.750″ | 2.0″ | 1.5″ | 0.551″ | 0.984″ | 0.766″ | M12 |
| 204-882 | 10″ | 4.750″ | 2.0″ | 1.5″ | 0.630″ | 1.181″ | 1.207″ | M12 |
| 204-883 | 12″ | 5.50″ | 2.0″ | 2.0″ | 0.827″ | 1.181″ | 1.169″ | M16 |
Extra Height – Steel – Pointed Soft Top Jaws
| ORDER # | Chuck Size | A (Length) | B (Height) | C (Width) | D (slot width) | K (distance between holes) | J (edge to hole) | Screw Size |
| 204-900 | 6″ | 3.0″ | 3.0″ | 1.25″ | 0.472″ | 0.787″ | 0.598″ | M10 |
| 204-901 | 8″ | 3.750″ | 4.0″ | 1.5″ | 0.551″ | 0.984″ | 0.766″ | M12 |
| 204-902 | 10″ | 4.750″ | 4.0″ | 1.5″ | 0.630″ | 1.181″ | 1.207″ | M12 |
| 204-903 | 12″ | 5.50″ | 4.0″ | 2.0″ | 0.827″ | 1.181″ | 1.169″ | M16 |
Standard Height – Steel – Square, Soft Jaws
| ORDER# | Chuck Size | A (Length) | B (Height) | C (Width) | D (slot width) | K (distance between holes) | J (edge to hole) | Screw Size |
| 204-850 | 6″ | 3.0″ | 1.5″ | 1.25″ | 0.472″ | 0.787″ | 0.598″ | M10 |
| 204-851 | 8″ | 3.750″ | 2.0″ | 1.5″ | 0.551″ | 0.984″ | 0.766″ | M12 |
| 204-852 | 10″ | 4.750″ | 2.0″ | 1.5″ | 0.630″ | 1.181″ | 1.207″ | M12 |
| 204-853 | 12″ | 5.50″ | 2.0″ | 2.0″ | 0.827″ | 1.181″ | 1.169″ | M16 |
| 204-854 | 15″ | 5.5″ | 3.0″ | 2.5″ | .866″ | 1.693″ | 1.382″ | M20 |
Extra Height – Steel – Square, Soft Top Jaws
| ORDER # | Chuck Size | A (Length) | B (Height) | C (Width) | D (slot width) | K (distance between holes) | J (edge to hole) | Screw Size |
| 204-850 | 6″ | 3.0″ | 1.5″ | 1.25″ | 0.472″ | 0.787″ | 0.598″ | M10 |
| 204-851 | 8″ | 3.750″ | 2.0″ | 1.5″ | 0.551″ | 0.984″ | 0.766″ | M12 |
| 204-852 | 10″ | 4.750″ | 2.0″ | 1.5″ | 0.630″ | 1.181″ | 1.207″ | M12 |
| 204-853 | 12″ | 5.50″ | 2.0″ | 2.0″ | 0.827″ | 1.181″ | 1.169″ | M16 |
| 204-854 | 15″ | 5.5″ | 3.0″ | 2.5″ | .866″ | 1.693″ | 1.382″ | M20 |
Toolholder Bushings

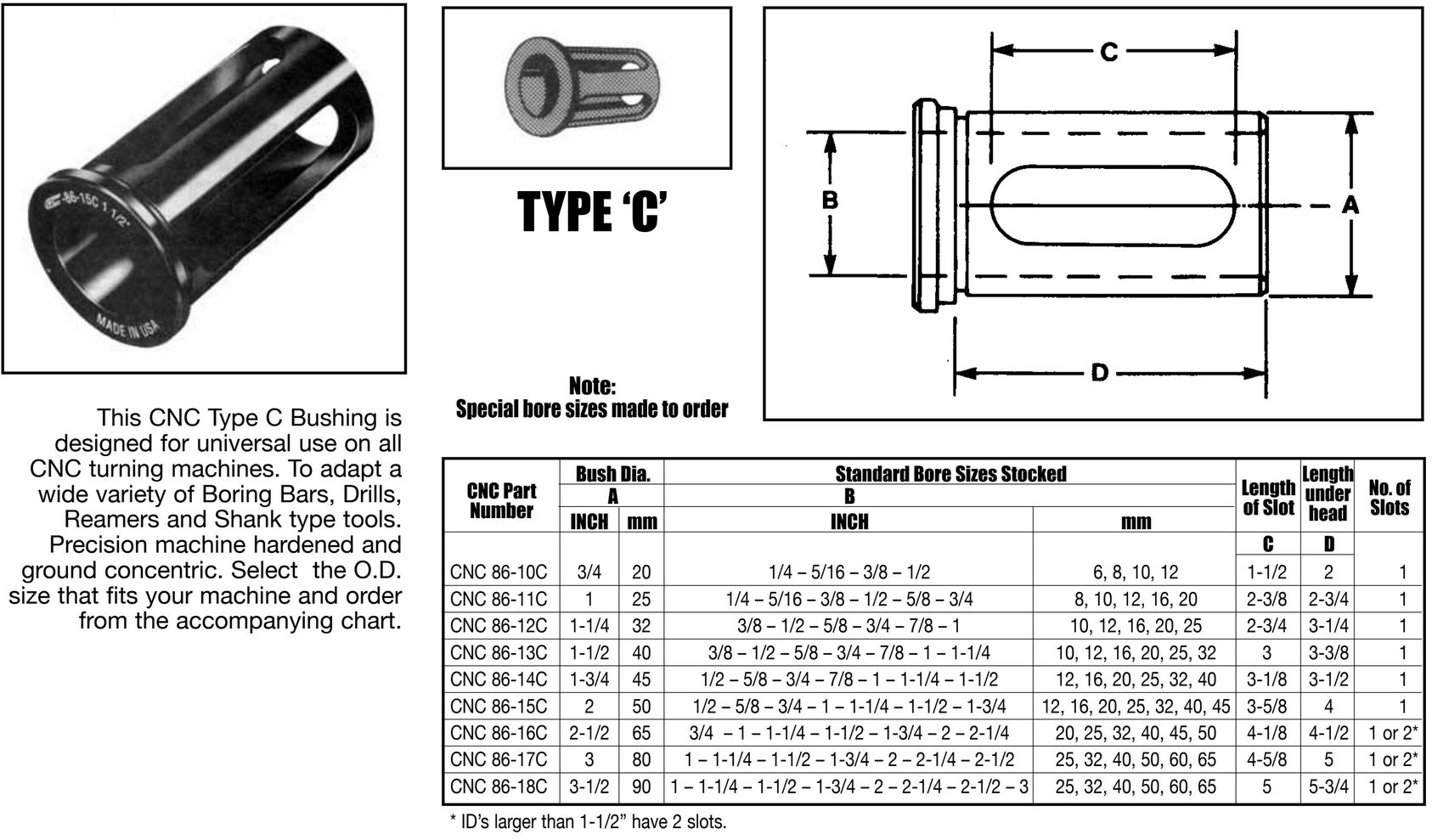

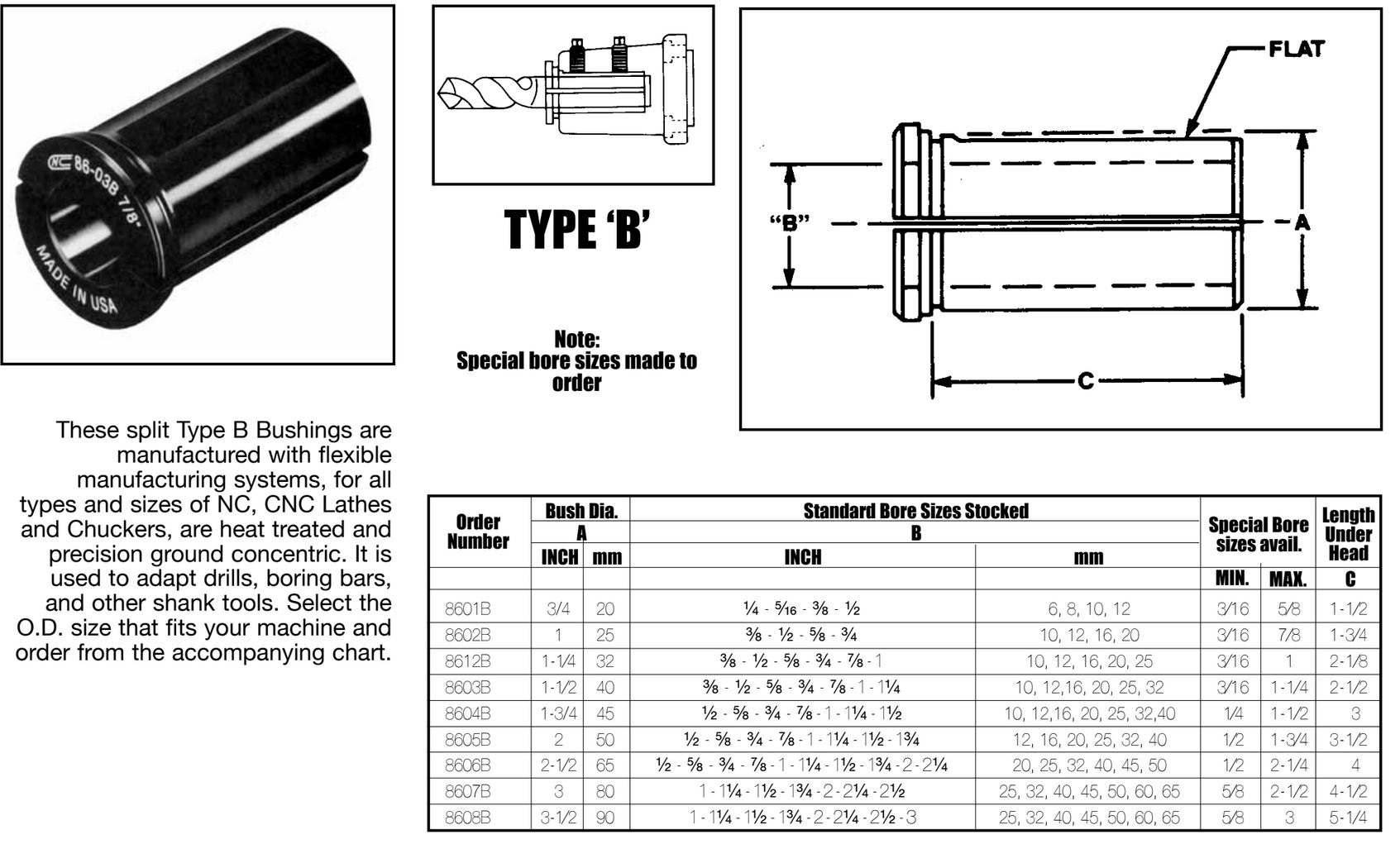

We also offer Type B and Type C toolholder bushings. View all standard parts below and click to enlarge. Other styles are available upon request! Contact us for more information.
Product Specs
• Series: 4243
• Coolant: Conv./ Guhrojet
• Type: GM 300
• Tolerance: h8
• Holder Size: CAT
CAT precision clamping chucks
Product Features
• for heavy-duty cutting as well as HSC and HPC
• CAT to ANSI B5.50
• balancing quality G6.3 / 15,000 rev./min
• for tool shank tolerance h6
• highest clamping force and stability thanks to mech. tension gearing
• actuation torque for clamping initiation 12Nm
• suitable for internal cooling up to 80 bar
• central coolant supply form AD
• CAT40 d4: does not correspond to ANSI B5.50
Product Specs
• Series: 4244
• Coolant: Conv./ Guhrojet
• Type: GM 300
• Holder Size: BT
MAS/BT precision clamping chucks
Product Features
• for heavy-duty cutting as well as HSC and HPC
• MAS/BT to JIS B 6339
• balancing quality G6.3 / 15,000 rev./min
• for tool shank tolerance h6
• highest clamping force and stability thanks to mech. tension gearing
• actuation torque for clamping initiation 12Nm
• suitable for internal cooling up to 80 bar central coolant supply form AD
Product Specs
• Series: 4300
• Coolant: Conv./ Guhrojet
• Type: GM 300
• Holder Size: HSK-A
HSK-A precision clamping chucks
Product Features
• for heavy-duty cutting as well as HSC and HPC
• to DIN 69893
• balancing quality G6.3 / 15,000 rev./min
• for tool shank tolerance h6
• highest clamping force and stability thanks to mech. tension gearing
• actuation torque for clamping initiation 12Nm
• suitable for internal cooling up to 80 bar
Product Specs
• Series: 4301
• Coolant: Conv./ Guhrojet
• Type: GM 300
• Holder Size: ISO
HISO taper precision clamping chucks
Product Features
• for heavy-duty cutting as well as HSC and HPC
• ISO taper to DIN 69871 form AD
• balancing quality G6.3 / 15,000 rev./min
• for tool shank tolerance h6
• highest clamping force and stability thanks to mech. tension gearing
• actuation torque for clamping initiation 12Nm
• suitable for internal cooling up to 80 bar central coolant supply form AD
Rotem offers the full range of Kitagawa Chucks:
• B & BT Series Power Chuck
• B-A Series Power Chuck
• BS300 Series Power Chuck
• DL200 Series Chuck
• And More!
Kitagawa Chucks
Kitigawa is the recommended brand of power chuck of numerous machine builders and Rotem is your one stop shop for the complete line of Kitigawa power chucks. We also carry original Kitigawa chuck jaws, adaptor plates, t-nuts, chuck grease and part ejectors.
Kitagawa Vises
We also offer the complete line of Kitagawa power vises with patented anti jaw lift technology to ensure your parts are secured properly. Ensure your safety with Kitagawa power vises from Rotem.
Rotem offers the full range of Kitagawa Vises and Accessories:
• Soft Jaws
• MH125N-4 Multi-Power Vise
• VC-N Series Vise For Small-Size Machines
• VE-N Series Steel Vise
• Standard & Optional Vise Accessories
• And More!
- Mount an end-stop easily
- Repeatability < 0.01 mm
- Clamping with workpiece end-stop and front end-stop
Hainbuch MANOK Workholding Device

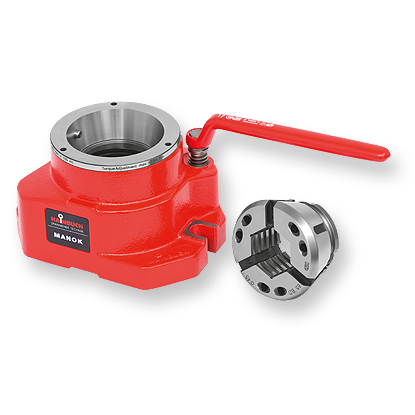

The all-rounder of the manual vises. With sensitive manual clamping and an integrated actuation lever, the Hainbuch MANOK is excellent value for the money and gives you the safety you require. It’s ideal for 5-sided machining but versatile in many applications like machining centers, measuring machines, slotters, broaching machines, drilling machines, and laser marking machines etc.
